Overview

USS-9210 Ultrasonic Soldering System

-  For small area applications
-  Laboratory equipment e.g. for hand operated equipment
-  5 - 15W Ultrasonic soldering output
-  Soldering tips diameter 1.0 - 5.0 mm
USS-9210 ultrasonic soldering system by MBR ELECTRONICS Switzerland

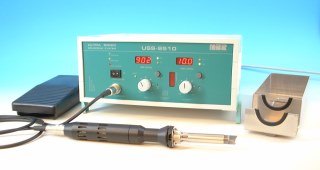

USS-9510 Ultrasonic Soldering System

-  For big area applications
-  Laboratory equipment e.g. for hand operated equipment
-  9 - 30W Ultrasonic soldering output
-  Soldering tips diameter 6.0 - 12.0 mm
   (Customised tips up to 30.0 mm dimension)
USS-9510 ultrasonic soldering system by MBR ELECTRONICS Switzerland
USS-1908 Ultrasonic Soldering System

-  For small AND big area applications
-  Industrial equipment e.g. for built-in robot equipment
-  Powerful for continuous operation
-  Data interface for controlling of soldering parameters
    and operation from the computer
-  15W + 30W ultrasonic output
-  Plug for hand tools and robot soldering heads
-  Available as rack housing or as desk station


USS-1908 ultrasonic soldering system by MBR ELECTRONICS Switzerland

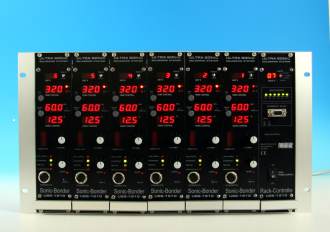

USS-1910 Ultrasonic Soldering System
complete system in 19" Rack housing 84TE / 6HE


System for Industry / Automation for multi soldering head applications

Maximum assembly of one Rack:
6 pcs Sonic-Bonder Ultrasonic Soldering Controller and
1 pc Sonic-Bonder Rack Controller

Complete system  is extendable to 5 Rack systems
= 30 Soldering Controller / 30 Soldering heads.

Prepared for operation with 1
5W and 30W soldering heads

USS-1910 ultrasonic soldering system
