USS-9210 Ultrasonic Soldering System

Product Information

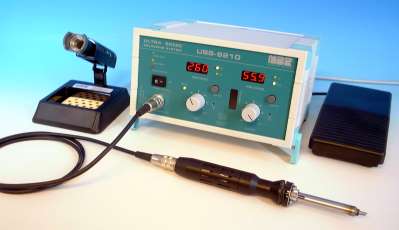

The USS-9210 system includes: USS-9210 Ultrasonic soldering system by MBR ELECTRONICS Switzerland
- Microprocessor controlled base unit with
  control knobs and displays
- Hand tool with ceramic heater, vibration unit,
  3 mm soldering tip and cable (1.5 m)
- Tool stand
- Foot switch with cable (2 m)
Specifications:
Frequency 60 kHz ± 3 kHz - automatically follow to resonance frequency
Output Power (ultrasonic) 5 - 15 W max.
Temperature control zero-crossing switching, measure resistance integrated in the ceramic heating element
Temperature range 150°C - 480°C
Heater Ceramic 80 W
Power 100 V - 230 V AC, 48 - 65 Hz
Dimensions (base unit) 240 (W) x 130 (H) x 200 (D) mm
Weight 3 kilos

HAND TOOLS:

 Inside the handgrip the ultrasonic vibration element (sonotrode) is integrated. This circumstance makes the handgrip portion look quite big and heavy. However, due to the ergonomic design, the instrument is easy to handle even for personnel with small hands.

Standard Hand Tool 15 W 9200-101 Standard Lötkolben zu Ultraschall Lötsystem USS-9200
Length total 240 mm
Diameterr 27 mm / 20 mm
Weight without cable 150 gr
Cable length 1.5 m

Hand Tool Light 15 W 9200-103 Handkolben Leichte Version zu Ultraschall Lötsystem USS-9200
Length total 230 mm
Diameter 24 mm / 16.5 mm
Weight without cable 110 gr
Length of cable 1.5 m
Standard Hand Tool with connection for compressed air

 for efficient cooling		 9200-106 Handtool for USS-9210 ultrasonic soldering system by MBR ELECTRONICS GmbH
Finger Trigger Attachment

for finger tip activation of ultrasonic power (instead of foot switch) This attachment fits on 9200-101 and 9200-106 hand tools only and requires a special hand tool cable. 		9200-903 9200-903 finger trigger attachment for USS-9210 hand tool finger trigger activatiooon of USS-9210 ultrasonic solder system

ROBOT HEADS:

Robot Soldering Head 15 W

For soldering tips of diameter
1.0 mm to 5.0 mm
- with fan
- with compressed air

9200-121
9200-122 		Roboter Lötkopf 12W für USS-1906 Ultraschall-Lötsystem
Robot Soldering Head 15 W SLIM

with compressed air fitting for cooling the vibration unit. For soldering tips of diameter 1.0 mm to 5.0 mm
 9200-127
 9200-127 Ultrasonic soldering robot head SLIM with compressed air fitting

Please contact us for the complete list of all available soldering hand tools / robot soldering heads.

Air Supply Controllder ASC-9000

This device allots the air supply (recommended in combination with the soldering hand tools 9200-107 or robot head 9200-127 in case there is no infrastructure available). This devise includes pressure reducer from shop air to 2 bar. Electrical air valve to switch the air on and off. In front face adjustable air-flow meter 1 - 5 ltr/min. to supply defined air stream to soldering head. An external air-pump can be connected as an option. 		 1900-9000 ASC-9000 Air Supply Controller by MBR ELECTRONICS Switzerland ASC-9000 Air Supply Controller by MBR ELECTRONICS Switzerland
SOLDERING TIPS:
There are four different soldering tips interchangeable. 1.0 mm, 2.0mm, 3.0 mm* and 4.0 mm in diameter.
*If no other specification is mentioned, this is the standard tip delivered with the system.
Soldering tip 1.0 mm 9200-2010 Lötspitzen zu USS-9200 Ultrasonic Soldering System
Soldering tip 2.0 mm 9200-2020
Soldering tip 3.0 mm 9200-2030
Soldering tip 4.0 mm 9200-2040
Soldering tip special / customised 9200-2xxS
